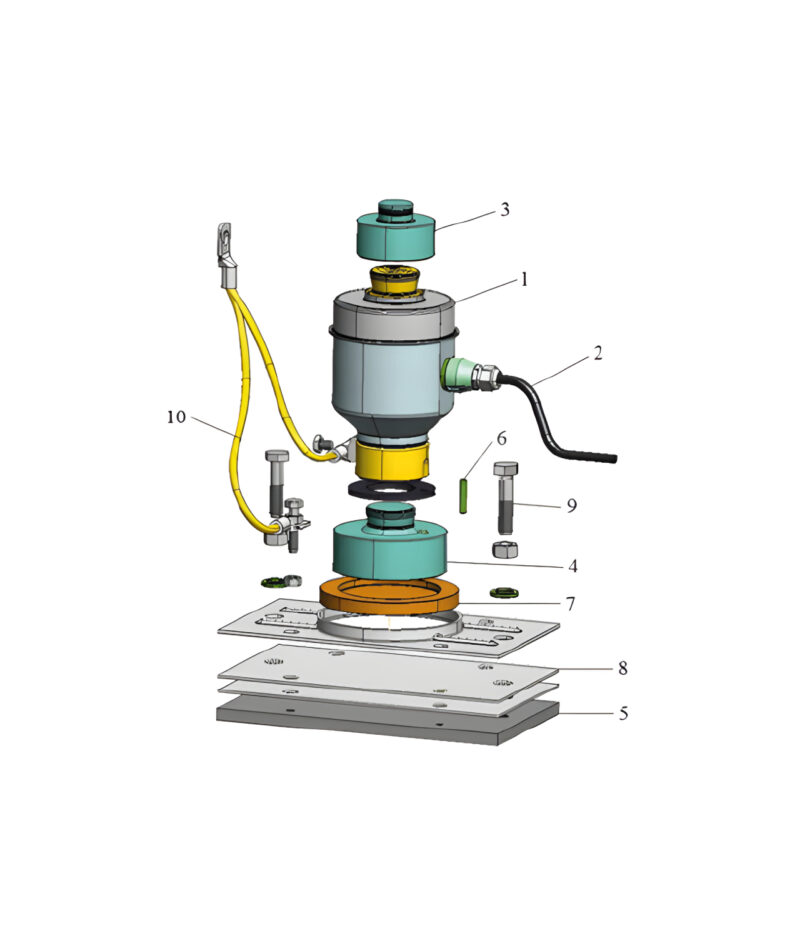

CPD Loadcell

INCLINATION UP TO 5°
(15 mm FROM VERTICAL POSITION)
– This excludes problems during thermal expansion or
caused by elastic deformation of the weigh bridge and
any settling of any foundation
– It also allows for a high level of accuracy,
even in installations with rather long weigh bridges.
8 STRAIN GAUGES
– High precision, also when the load cell is working
in a non-vertical position
– Better repeatability and reproducibility
LIGHTNING PROTECTION
The protection from lightning is one of the aspects to
which attention must be paid. Cooperativa Bilanciai
has included 3 different solutions to ensure effective
protection:
– A disk made from special insulation material that
interrupts the flow of electricity between the bridge’s
upper structure and the base, via the cell
– High section copper braid bypass
– Electrical board housed in the cell, with components
that limit voltage surge caused by lightning
RODENT-RESISTANT CABLE
– A special connection cable with a stainless steel sleeve
is available for areas where protection from rodents
is require.
